CKNMaterialParam Class Reference

Class for Material Parameter. More...

#include "KNMaterialParam.h"

Collaboration diagram for CKNMaterialParam:

Public Member Functions
	CKNMaterialParam ()
	~CKNMaterialParam ()
GEO_PARAMETER	BuildMaterialParam (char *pszMaterialName, bool &bResult)
	Load material parameter. More...
GEO_PARAMETER	BuildMaterialParam (MATERIAL_INDEX material, MATERIAL_INDEX material2, bool &bResult)
	Load material parameter. More...
GEO_PARAMETER	BuildMaterialParam (MATERIAL_INDEX material, bool &bResult)
	Load material parameter. More...

Detailed Description

Class for Material Parameter.

Date

03/Oct/2014

Author

Kyu Nam Cho(mysto.nosp@m.us@k.nosp@m.orea..nosp@m.ac.k.nosp@m.r), Hoon Ryu(elec1.nosp@m.020@.nosp@m.gmail.nosp@m..com)

Definition at line 21 of file KNMaterialParam.h.

Constructor & Destructor Documentation

CKNMaterialParam::CKNMaterialParam

(

)

Definition at line 15 of file KNMaterialParam.cpp.

{
}

CKNMaterialParam::~CKNMaterialParam

(

)

Definition at line 20 of file KNMaterialParam.cpp.

{
}

Member Function Documentation

GEO_PARAMETER CKNMaterialParam::BuildMaterialParam	(	char *	pszMaterialName,
		bool &	bResult
	)

Load material parameter.

Parameters

pszMaterialName	Material name string
bResult	When operation success assigned true, else assigned false

Returns

structure instance of material parameter

Definition at line 29 of file KNMaterialParam.cpp.

References ATOM_NUM_BASE, CKNIPCCUtility::ConvertLower(), GaAs, InAs, and Si.

Referenced by CKNHamiltonianBuilder::BuildOffsiteMatrixFor10Band(), and CKNHamiltonianBuilder::FillMatrixFor10Band().

{
    char                szMaterialName[1024];
    MATERIAL_INDEX      material;

    strcpy(szMaterialName, pszMaterialName);
    CKNIPCCUtility::ConvertLower(szMaterialName);

    if (!strcmp(szMaterialName, "si"))
        material = Si;
    else if (!strcmp(szMaterialName, "gaas"))
        material = GaAs;
    /*else if (!strcmp(szMaterialName, "as"))
        material = As;*/
    else if (!strcmp(szMaterialName, "inas"))
        material = InAs;
    else
        material = ATOM_NUM_BASE;

    return BuildMaterialParam(material, bResult);;
}

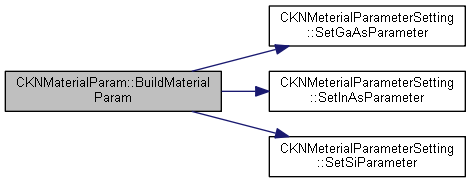

Here is the call graph for this function:

Here is the caller graph for this function:

GEO_PARAMETER CKNMaterialParam::BuildMaterialParam	(	MATERIAL_INDEX	material,
		MATERIAL_INDEX	material2,
		bool &	bResult
	)

Load material parameter.

Parameters

material	Material index
material	Material index 2
bResult	When operation success assigned true, else assigned false

Returns

structure instance of material parameter

Definition at line 91 of file KNMaterialParam.cpp.

References GaAs, InAs, CKNMeterialParameterSetting::SetGaAsParameter(), CKNMeterialParameterSetting::SetInAsParameter(), CKNMeterialParameterSetting::SetSiParameter(), Si, and GEO_PARAMETER::strMaterialType.

{
    GEO_PARAMETER       parameter;
    MATERIAL_INDEX      multimater = (MATERIAL_INDEX)(material | material2);

    switch (multimater)
    {
    case Si:
        strcpy(parameter.strMaterialType, "Si");
        CKNMeterialParameterSetting::SetSiParameter(&parameter);
        bResult = true;
        break;
    case GaAs:
        strcpy(parameter.strMaterialType, "GaAs");
        CKNMeterialParameterSetting::SetGaAsParameter(&parameter);
        bResult = true;
        break;
    case InAs:
        strcpy(parameter.strMaterialType, "InAs");
        CKNMeterialParameterSetting::SetInAsParameter(&parameter);
        bResult = true;
        break;
    default:
        bResult = false;
        break;
    }

    return parameter;
}

Here is the call graph for this function:

GEO_PARAMETER CKNMaterialParam::BuildMaterialParam	(	MATERIAL_INDEX	material,
		bool &	bResult
	)

Load material parameter.

Parameters

material	Material index
bResult	When operation success assigned true, else assigned false

Returns

structure instance of material parameter

Definition at line 56 of file KNMaterialParam.cpp.

References GaAs, InAs, CKNMeterialParameterSetting::SetGaAsParameter(), CKNMeterialParameterSetting::SetInAsParameter(), CKNMeterialParameterSetting::SetSiParameter(), Si, and GEO_PARAMETER::strMaterialType.

{
    GEO_PARAMETER       parameter;

    switch (material)
    {
    case Si:
        strcpy(parameter.strMaterialType, "Si");
        CKNMeterialParameterSetting::SetSiParameter(&parameter);
        bResult = true;
        break;
    case GaAs:
        strcpy(parameter.strMaterialType, "GaAs");
        CKNMeterialParameterSetting::SetGaAsParameter(&parameter);
        bResult = true;
        break;
    case InAs:
        strcpy(parameter.strMaterialType, "InAs");
        CKNMeterialParameterSetting::SetInAsParameter(&parameter);
        bResult = true;
        break;
    default:
        bResult = false;
        break;
    }

    return parameter;
}

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• D:/For Doxygen/KNMaterialParam.h
• D:/For Doxygen/KNMaterialParam.cpp
